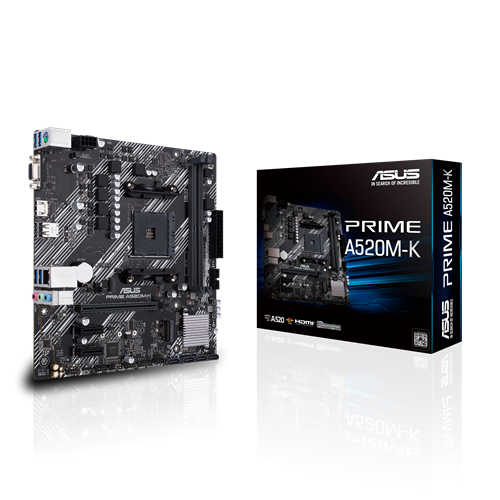

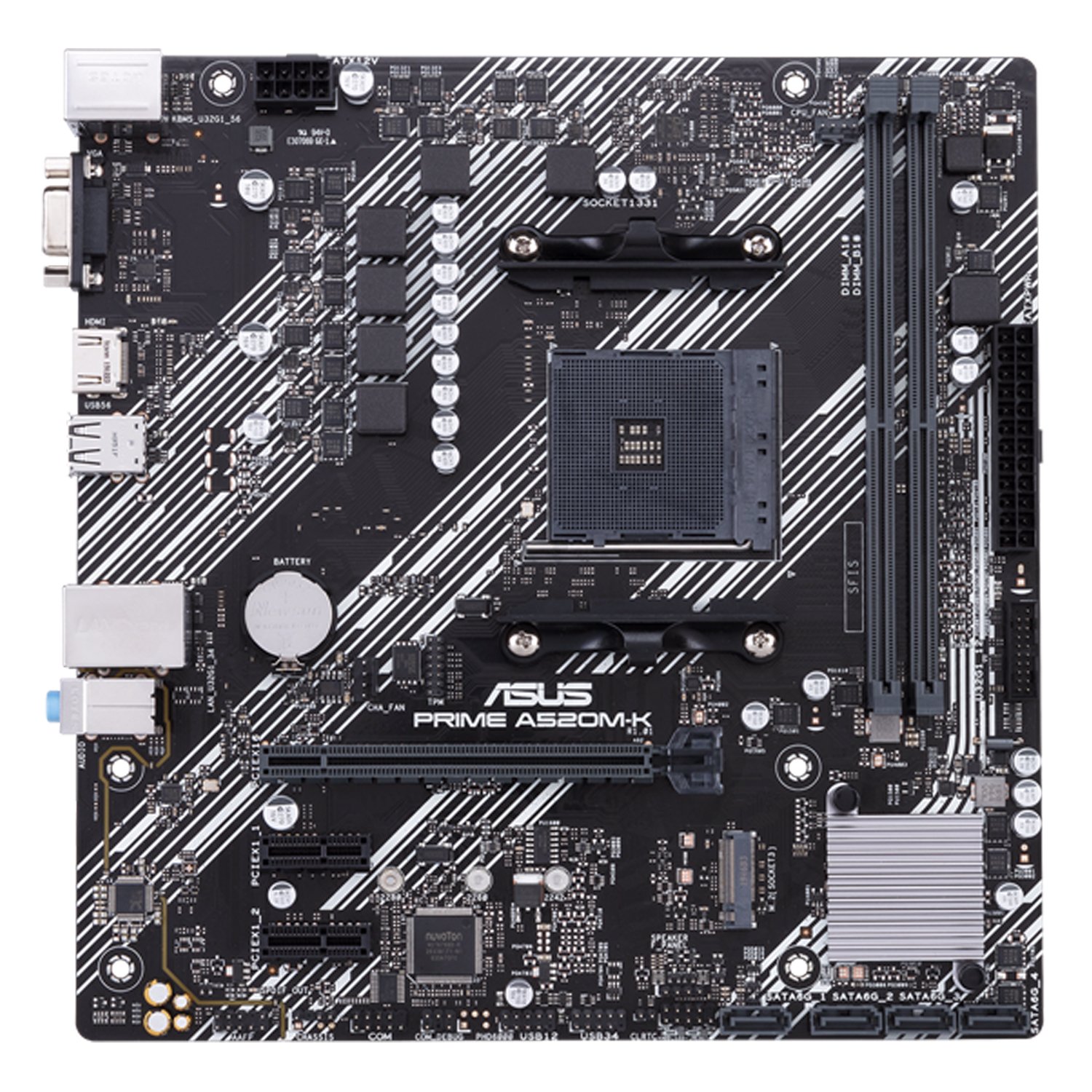

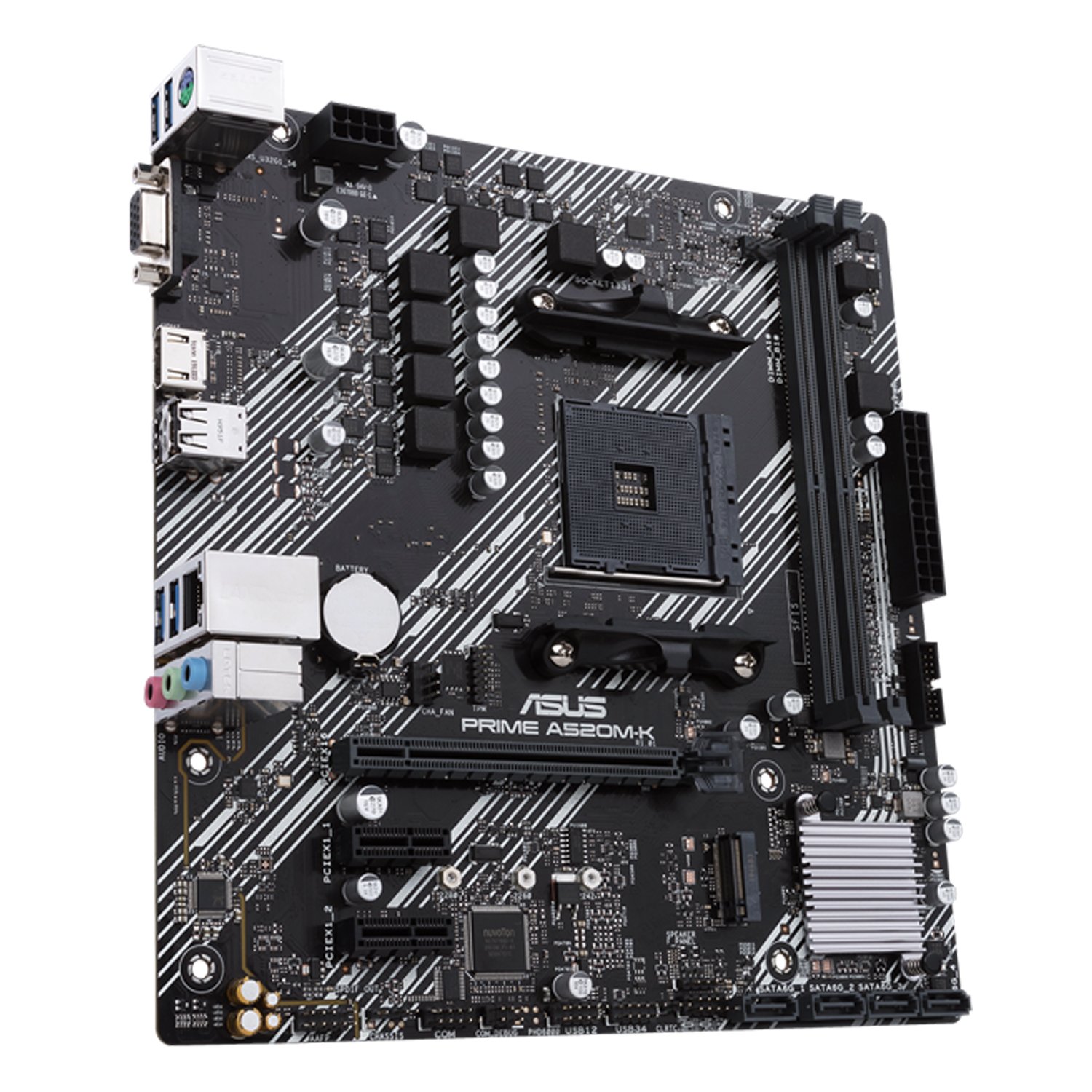

ASUS PRIME A520M-K
- Socket AMD AM4: Listo para procesadores de escritorio Ryzen™ 5000 Series / 4000 G-Series / 3000 Series.
- Enfriamiento completo: Disipador de Chipset y Fan Xpert.
- Conectividad ultrarrápida: Compatibilidad con M.2, Ethernet de 1 Gb, USB 3.2 Gen 2 tipo A.
- 5X Protection III: Múltiples protecciones de hardware para la protección integral del sistema.
ESPECIFICACIONES TECNICAS:
Modelo:
PRIME A520M-K
CPU:
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop
Chipset:
AMD A520
Memoria:
2 x DIMM, Max. 64GB, DDR4 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
Gráficos:
1 x HDMI 2.1(4K@60HZ)
Slots de Expansión:
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors,AMD A520 Chipset. 2 x PCIe 3.0 x1,1 x PCIe 3.0 x16 (x16 mode)
Almacenamiento:
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors : ,Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports,AMD A520 Chipset :,1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support,4 x SATA 6Gb/s port(s),,Support Raid 0, 1, 10
LAN:
Realtek RTL8111H 1Gb Ethernet,ASUS LANGuard
Audio:
Realtek ALC887/8977.1 Surround Sound High Definition Audio CODEC *,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- Audio Shielding,- Dedicated audio PCB layers,Audio Feature :,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Puertos USB:
4 x USB 2.0 port(s)(4 x Type-A),Front USB Port ( Total 6 ),Rear USB Port ( Total 6 ),2 x USB 3.2 Gen 1 port(s)(2 x Type-A),4 x USB 3.2 Gen 1 port(s)(4 x Type-A),2 x USB 2.0 port(s)(2 x Type-A)

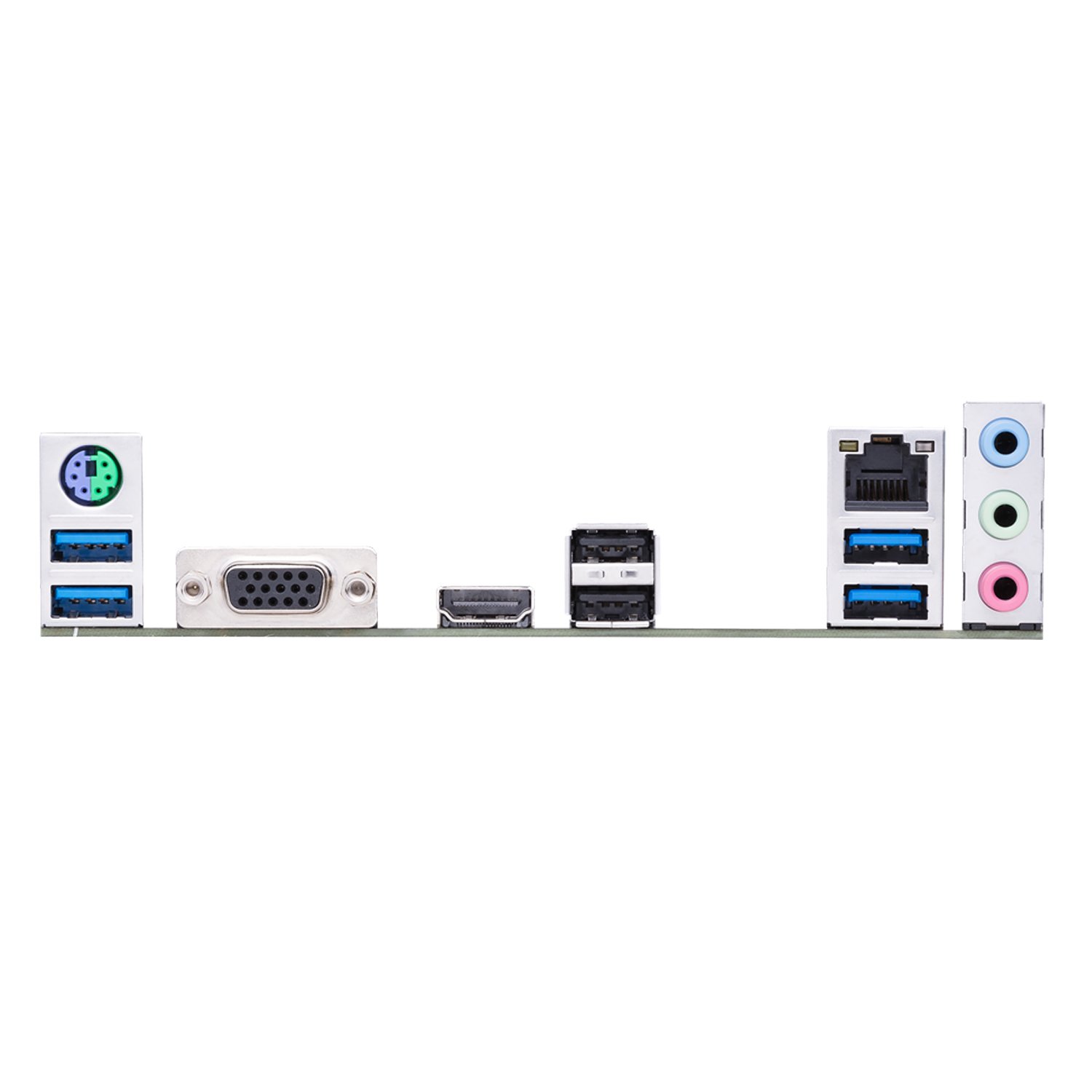

Puertos I/O Traseros:
4 x USB 3.2 Gen 1 (blue) Type-A,1 x D-Sub,2 x USB 2.0,3 x Audio jack(s),1 x PS/2 keyboard/mouse combo port(s),1 x HDMI,1 x LAN (RJ45) port(s)
Internal I/O:
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),1 x Chassis Fan connector(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x 8-pin EATX 12V Power connectors,1 x System panel connector,1 x Speaker connector,1 x CPU Fan connector(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x SPI TPM header,4 x SATA 6Gb/s connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s),1 x COM port header
Accessorios:
1 x M.2 SSD screw package(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x Supporting DVD
BIOS:
256 Mb Flash ROM, UEFI AMI BIOS
Capacidad de gestión:
WOL by PME, PXE
Sistema Operativo:
Windows® 10 64-bit
Factor de forma:
8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ),mATX Form Factor
