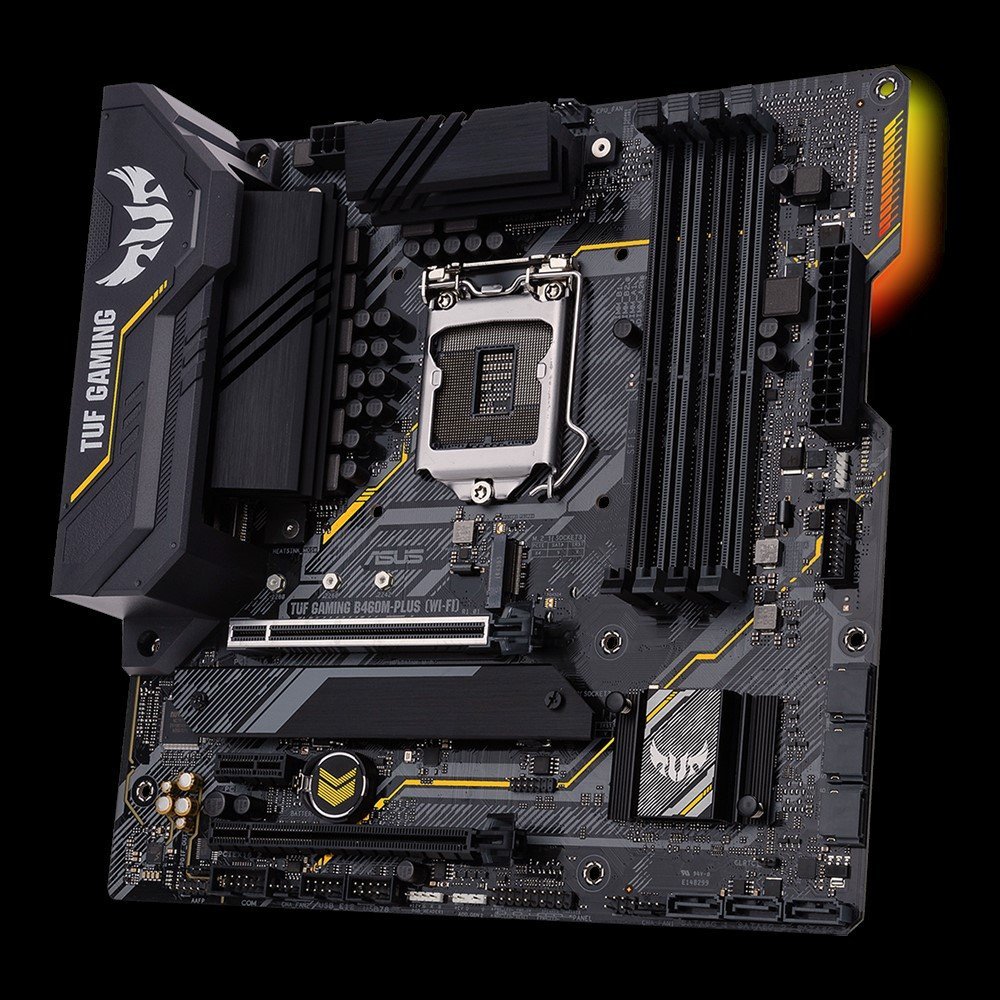

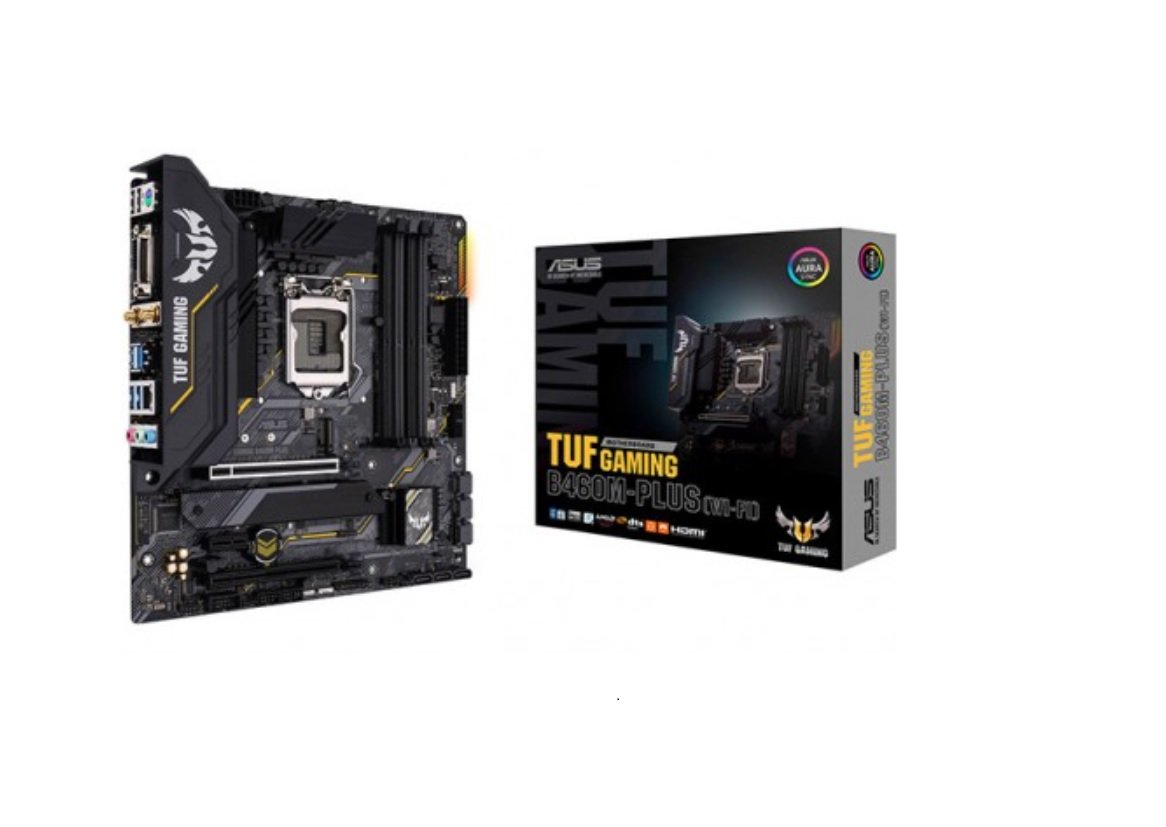

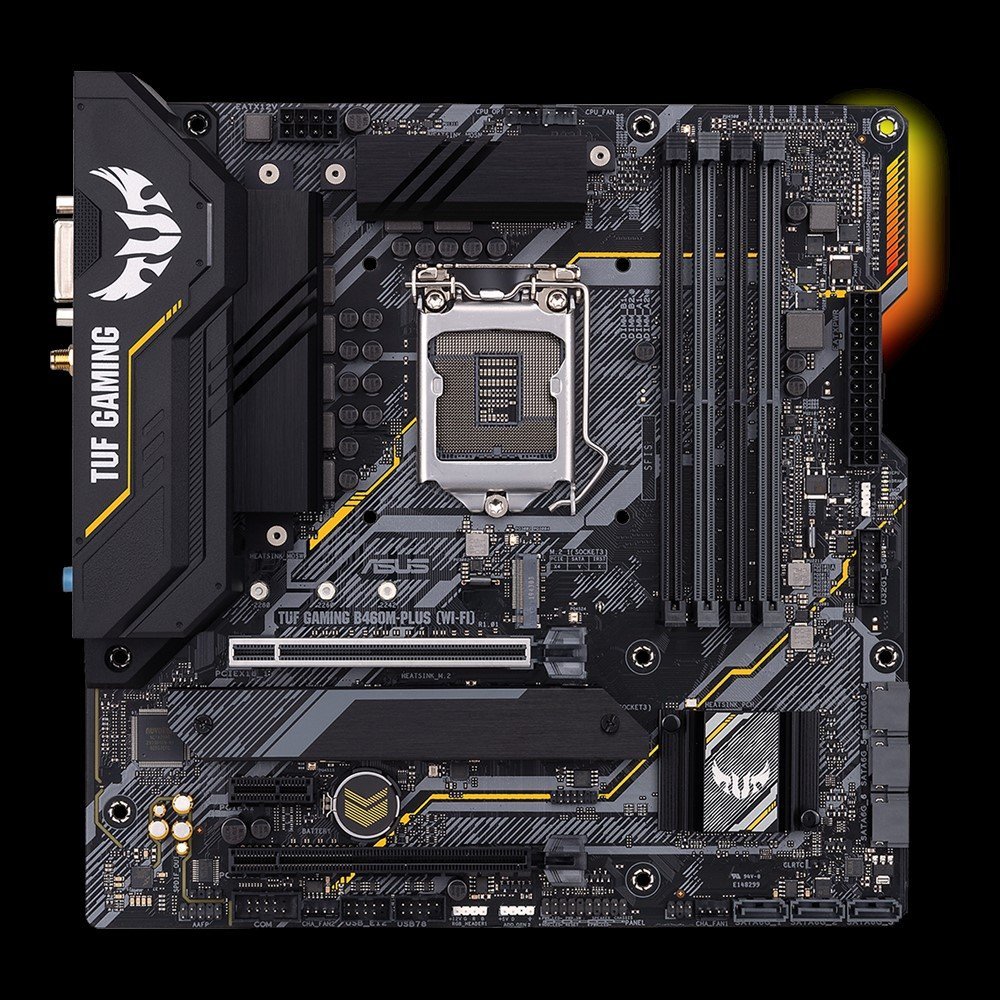

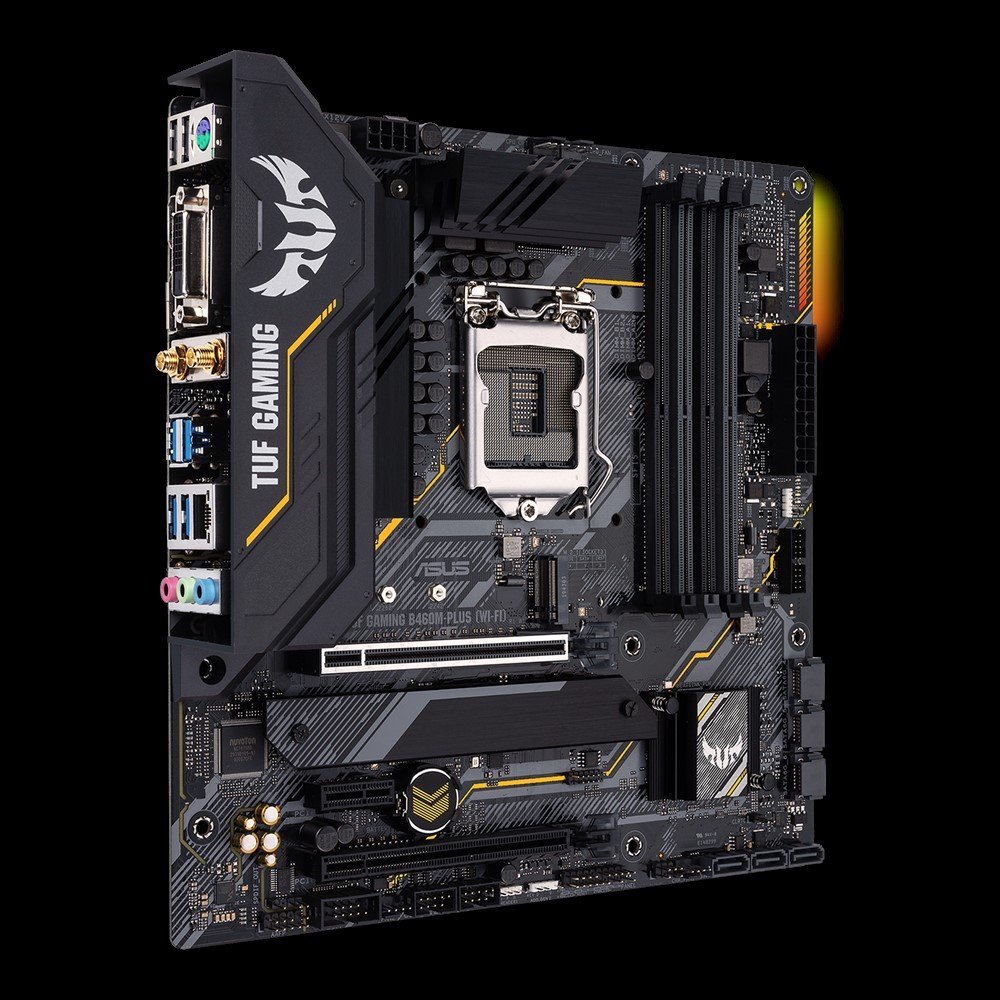

Asus TUF Gaming B460M-Plus
Características destacadas
Intel LGA 1200
Chipset Intel B460
Asus Aura Sync RGB
2 x M.2 / 4 x DIMM / USB 3.2
Tamaño: micro-ATX
Construida con componentes de grado militar para ofrecer la máxima durabilidad en los entornos más exigentes, la Asus TUF Gaming B460M-Plus te permitirá sacar todo el partido a los procesadores Intel de décima generación. Entre las numerosas ventajas de esta placa base micro-ATX con zócalo 1200, destacar el slot dual M.2 y su variada conectividad: USB 3.2, DisplayPort, HDMI, DVI… Además, la Asus TUF Gaming B460M-Plus incluye la alucinante iluminación Asus Aura Sync y multitud de detalles que le otorgan un estilo único y diferenciador.
CPU
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel B460
Memoria
Intel® B460 Chipset
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Gráficos
Integrated Graphics Processor
1 x DisplayPort 1.4 **
1 x HDMI 1.4b
1 x DVI-D
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Supports AMD 2-Way CrossFireX Technology
Slots de expansión
Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel® B460 Chipset
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x1
Almacenamiento
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® B460 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready *2
Redes
Intel® I219-V 1Gb Ethernet
Audio
Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC *
USB
Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
Características especiales
ASUS TUF PROTECTION
ASUS Q-Design
ASUS Thermal Solution
AURA Sync

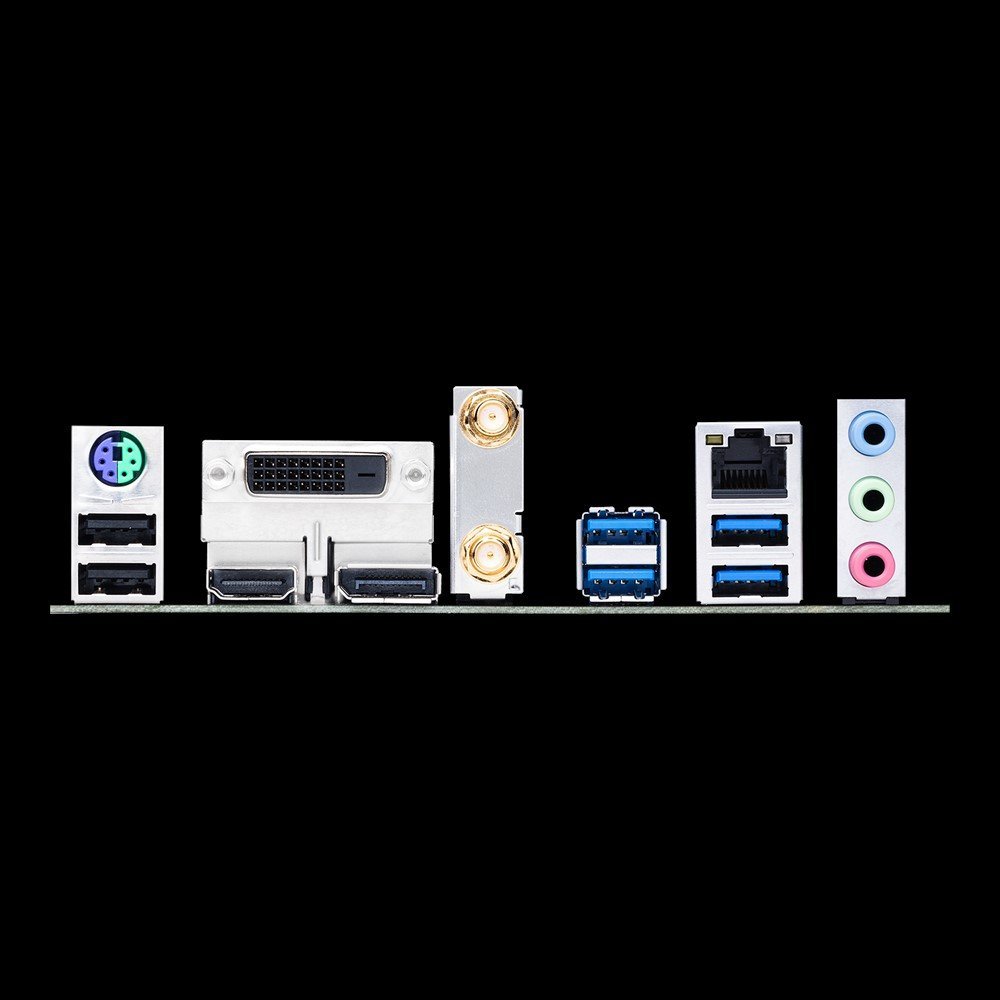

Puertos traseros
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)
Conectores internos
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header
Formato
micro-ATX: 24.4 x 24.4 cm
