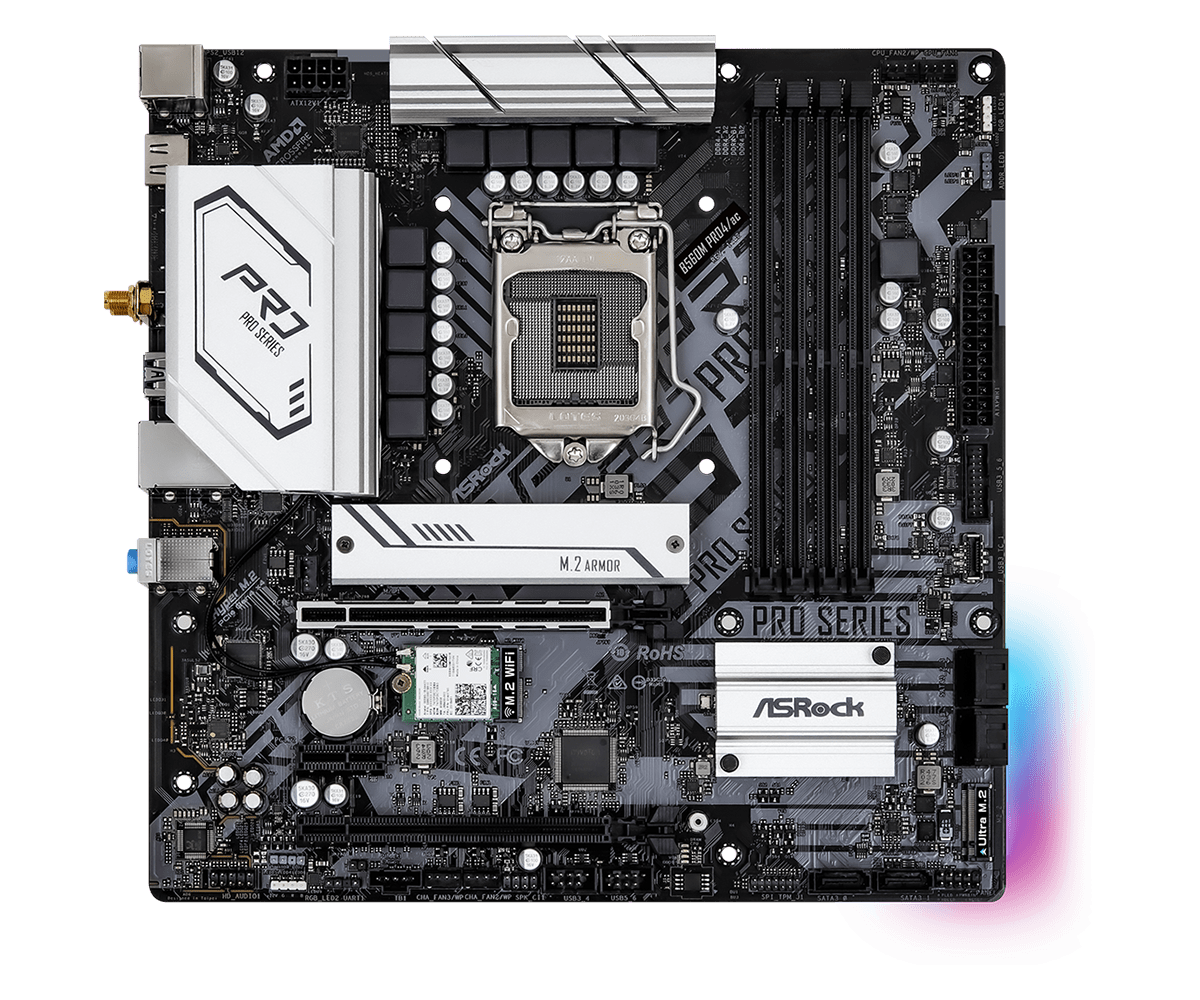

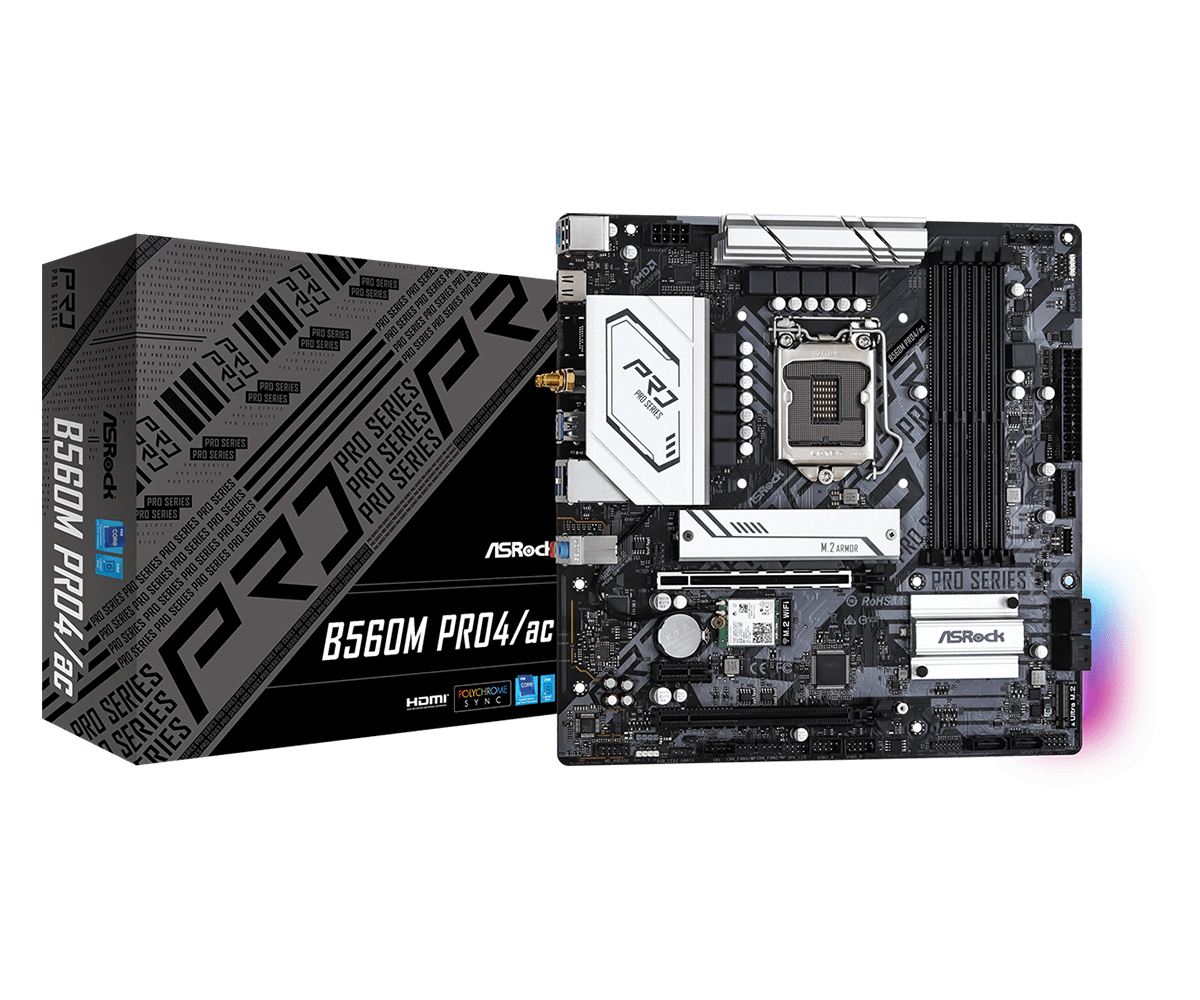

- Soportes 10a Gen Intel ® Core ™ y 11 Gen Intel ® Core ™
- Diseño de alimentación de 8 fases
- Soporta DDR4 4800MHz (OC)
- 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
- Opciones de salida de gráficos: HDMI
- Audio 7.1 canales HD (Códec de audio Realtek ALC897), audio Nahimic
- 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4)
1 x Ultra M.2 (PCIe Gen3 x4 y SATA3) - 7 x USB 3.2 Gen1 (4 x posteriores, 2 x frontales, 1 frontal tipo C)
6 x USB 2.0 (2 x posteriores, 4 x frontales) - Intel ® Gigabit LAN
- Intel ® 802.11ac WiFi + BT 5.1
- ASRock Polychrome SYNG
Característica única
ASRock Super Alloy
– Prima Power Choke 50A
– Negro Zafiro PCB
– Alta Densidad tela de cristal PCB
ASRock Intel ® 4-Capa de memoria de grupo (Planos en capas externas) Tecnología
Intel ® 802.11ac WiFi
Ranura ASRock acero
ASRock Cobertura completa M.2 del disipador de calor
y persistente Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (para todos los puertos USB, audio, LAN)
ASRock Live Update & APP Shop
- UPC– Admite procesadores Intel® Core ™ de décima generación y procesadores Intel® Core ™ de 11.a generación (LGA1200)
– Diseño Digi Power
– Diseño de 8 fases de alimentación
– Admite la tecnología Intel® Turbo Boost Max 3.0 - Chipset– Intel ® B560
- Memoria– Tecnología de memoria DDR4 de doble canal
– 4 ranuras DIMM DDR4
– Los procesadores Intel® Core ™ de 11.a generación admiten memoria DDR4 no ECC, sin búfer hasta 4800+ (OC) *
– Los procesadores Intel® Core ™ de 10.a generación admiten DDR4 no ECC, memoria sin búfer hasta 4600+ (OC) *
– Admite módulos de memoria ECC UDIMM (funciona en modo no ECC)
– Máx. capacidad de la memoria del sistema: 128 GB * *
– Compatible con Intel® Extreme Memory Profile (XMP) 2.0*11th Gen Intel® Core™ (i9/i7/i5) support DDR4 2933 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively.
10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively.**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. - BIOS– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, VCCIN AUX, VCCSA, VCCIO, CPU PLL Voltage - Graphics– 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics
– Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz with 11th Gen Intel® Core™ Processors
– Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz with 10th Gen Intel® Core™ Processors
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
– Supports HDCP 2.2 with HDMI Port (HDCP 2.3 ready with 11th Gen Intel® Core™ Processors)*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Graphics specifications may vary between CPU types. - Audio– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection
– Nahimic Audio - LAN– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE - Wireless LAN– Módulo WiFi Intel® 802.11ac
– Soporta IEEE 802.11a / b / g / n / ac
– Soporta banda dual (2.4 / 5 GHz)
– Soporta conexiones inalámbricas de alta velocidad hasta 433Mbps
– Soporta Bluetooth 5.1 + Clase II de alta velocidad - Ranuras11th Gen Intel® Core™ Processors
– 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))*
10th Gen Intel® Core™ Processors
– 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))*- 1 x PCI Express 3.0 x1 Slot
– Supports AMD Quad CrossFireX™ and CrossFireX™
– 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)*Supports NVMe SSD as boot disks - Storage– 6 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug*
– 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel® Core™ processors only) **
– 1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)***If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
**Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit - Connector– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 2 x RGB LED Headers*
– 2 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
– 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)*Support in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

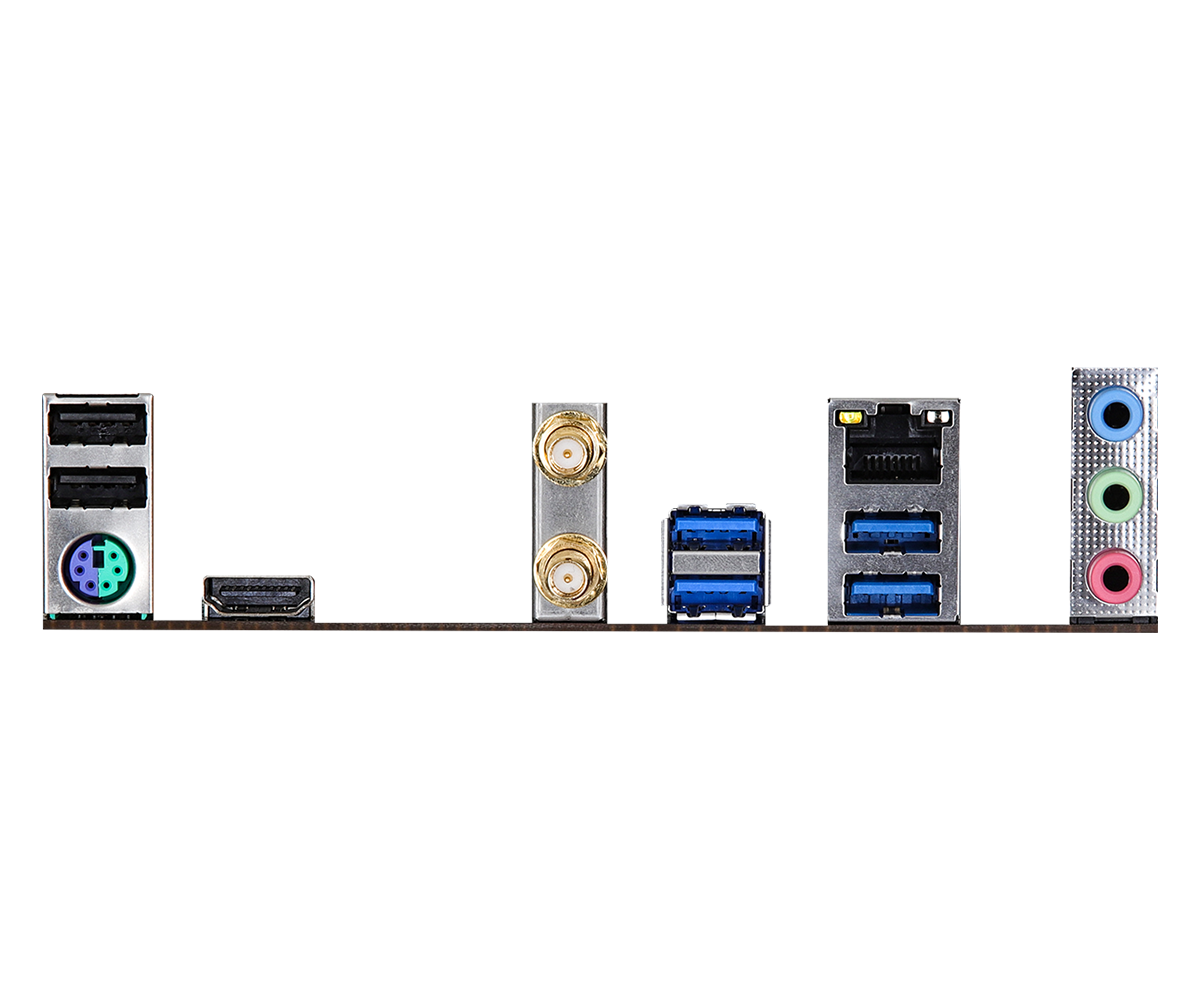

CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. - Rear Panel I/O– 2 x puertos de antena
– 1 x puerto de mouse / teclado PS / 2
– 1 x puerto HDMI
– 4 x puertos USB 3.2 Gen1 (admite protección ESD)
– 2 x puertos USB 2.0 (admite protección ESD)
– 1 x LAN RJ-45 Puerto con LED (ACT / LINK LED y SPEED LED)
– Conectores de audio HD: Entrada de línea / Altavoz frontal / Micrófono - Software y UEFISoftware
– ASRock Motherboard Utility (A-Tuning)
– ASRock Polychrome SYNC
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock Mis favoritos en UEFI
– ASRock Instant Flash
– ASRock Internet Flash* Estas utilidades se pueden descargar desde ASRock Live Update & APP Shop. - CD de soporte– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
- Accessories– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 2 x ASRock WiFi 2.4/5 GHz Antennas
– 2 x Screws for M.2 Sockets
– 1 x Standoff for M.2 Socket - Hardware Monitor– Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, VCCIN AUX, VCCSA, VCCIO - Form Factor– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
– Solid Capacitor design - OS– Microsoft ® de Windows ® 10 de 64 bits / 11 de 64 bits
- Certificaciones– FCC, CE
– Preparado para ErP / EuP (se requiere una fuente de alimentación preparada para ErP / EuP)
