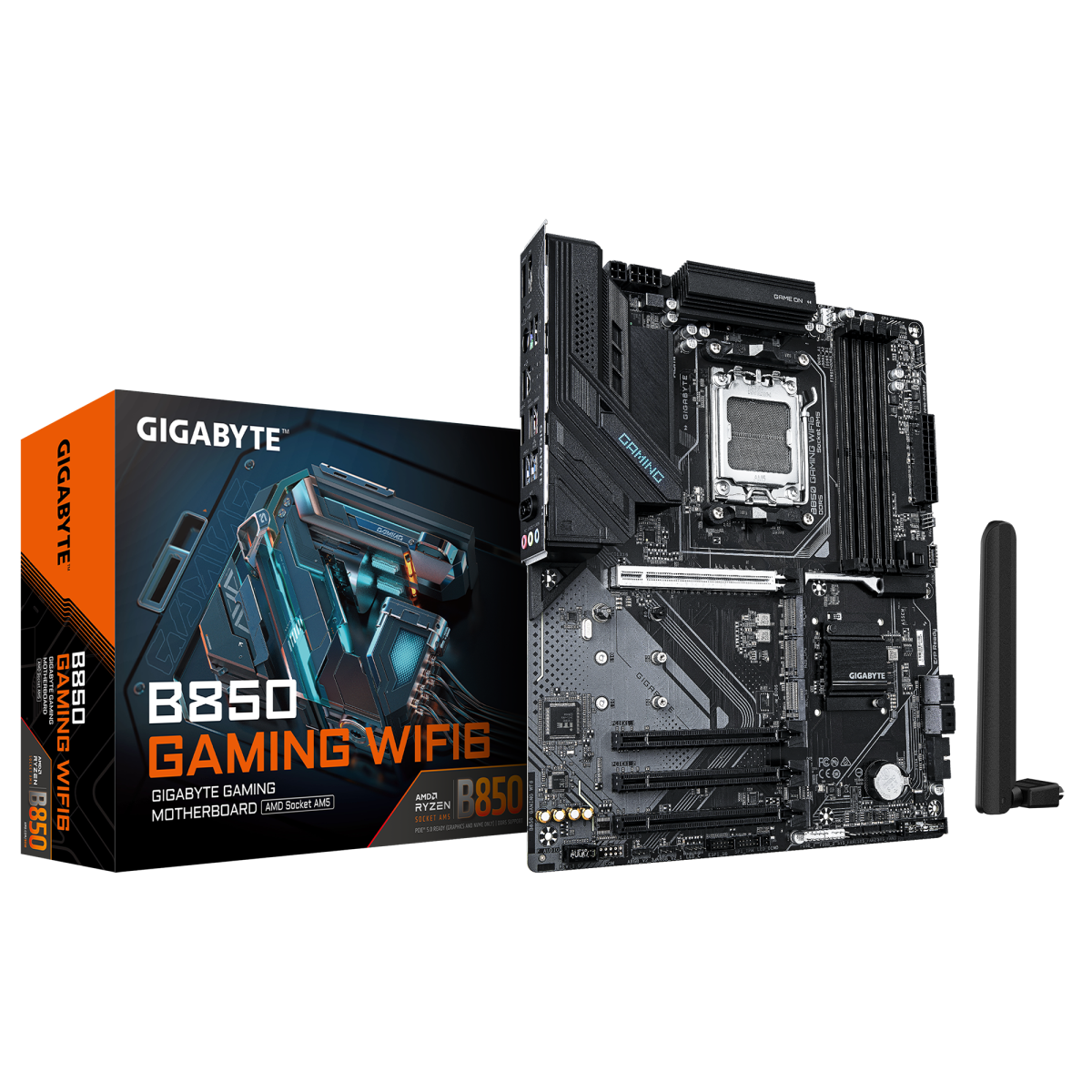

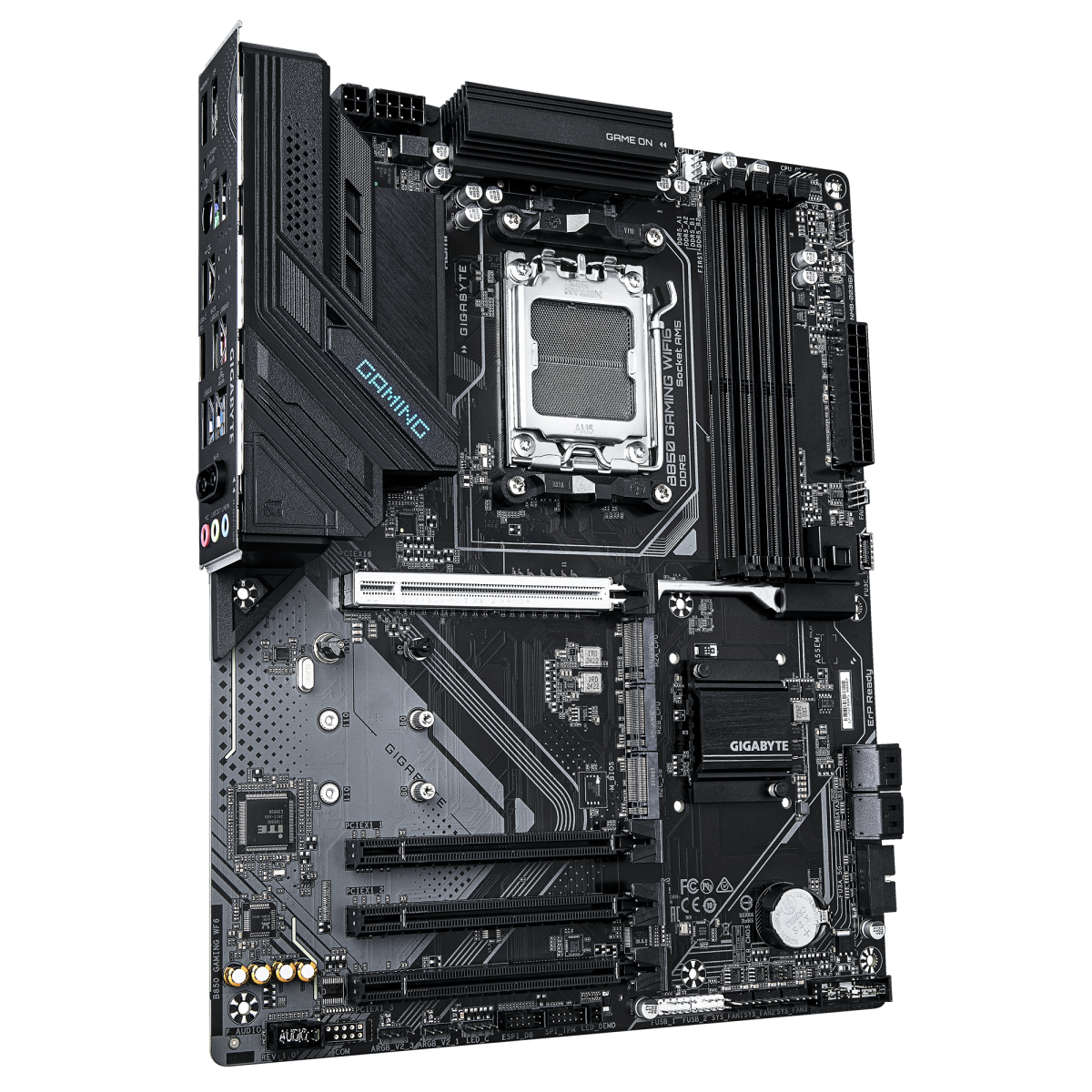

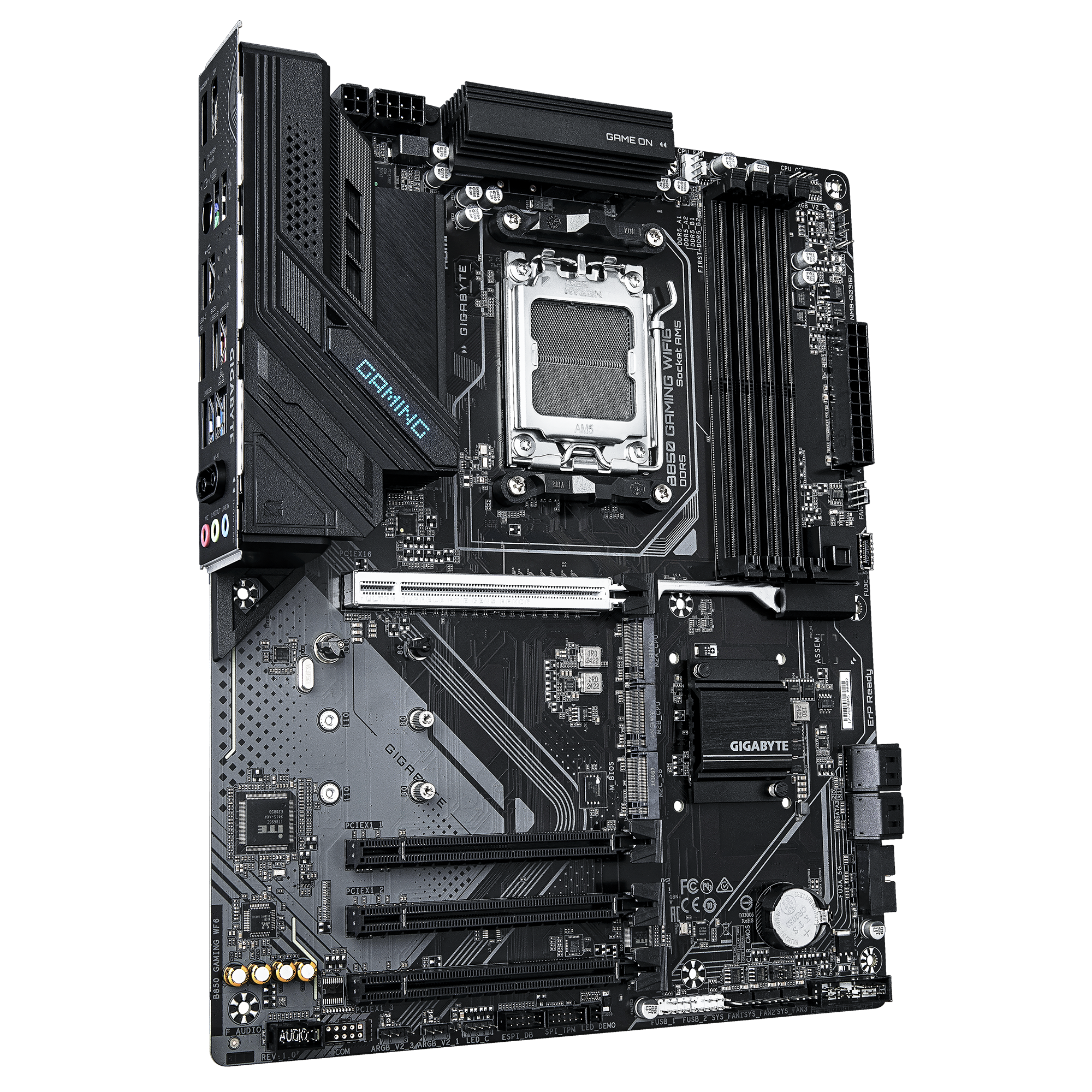

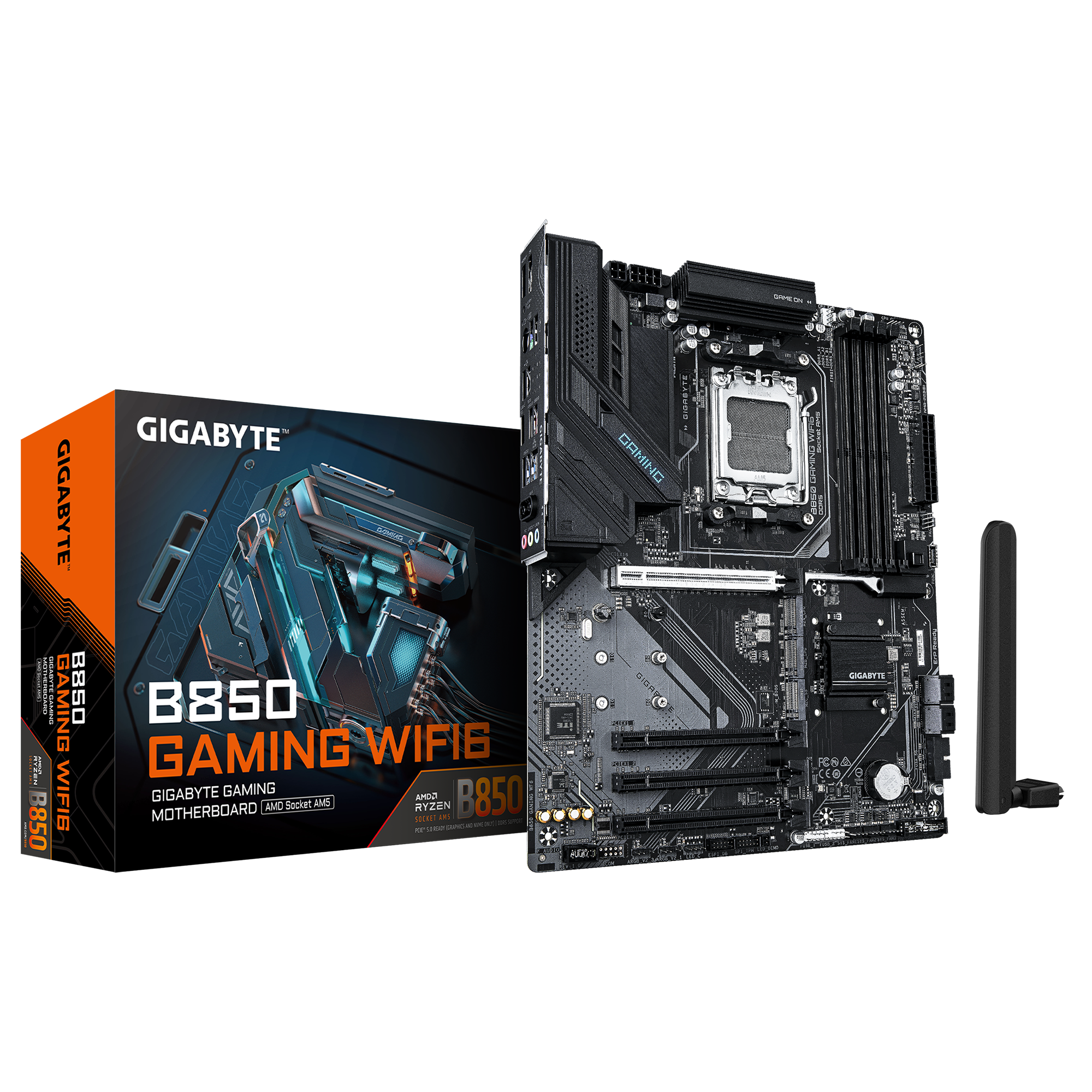

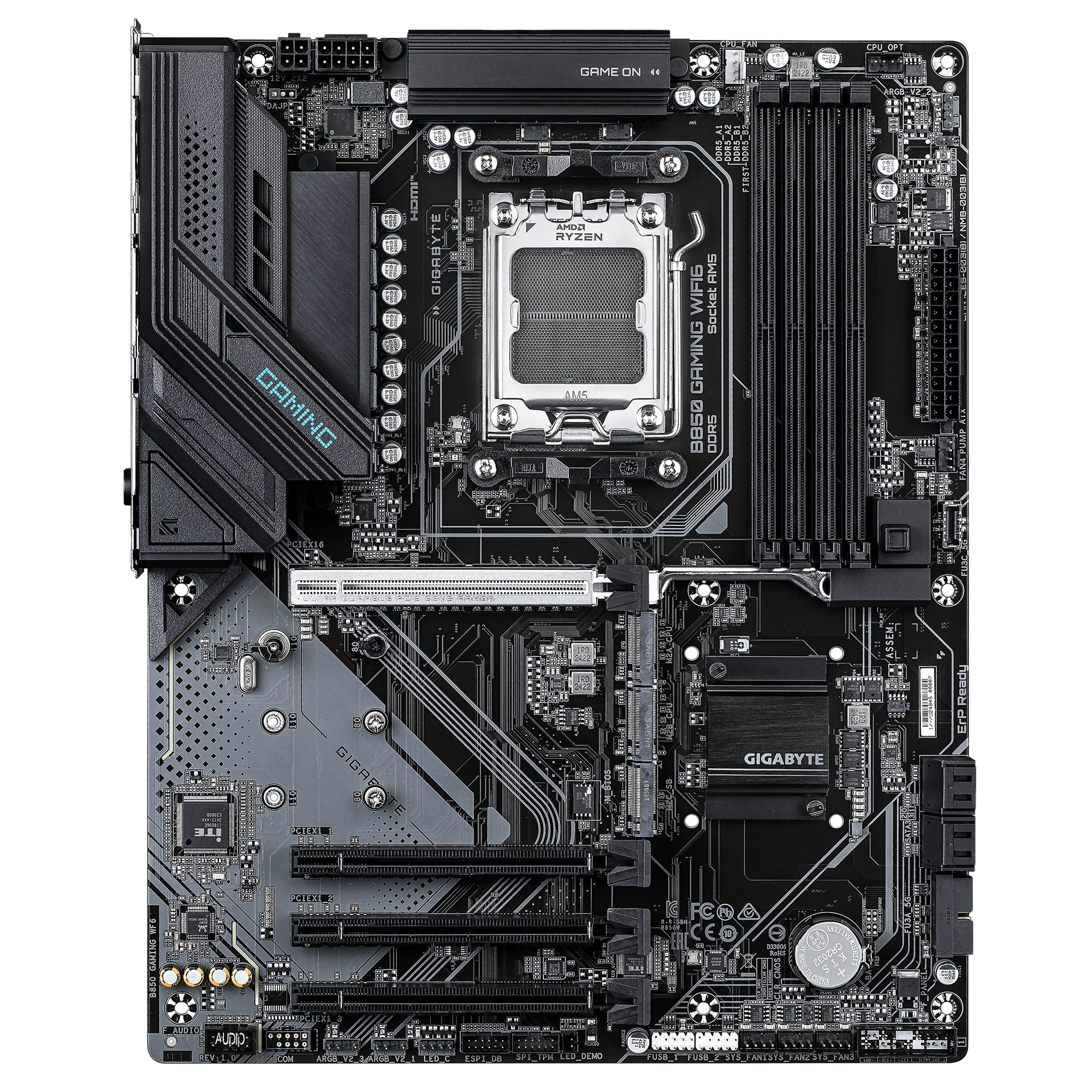

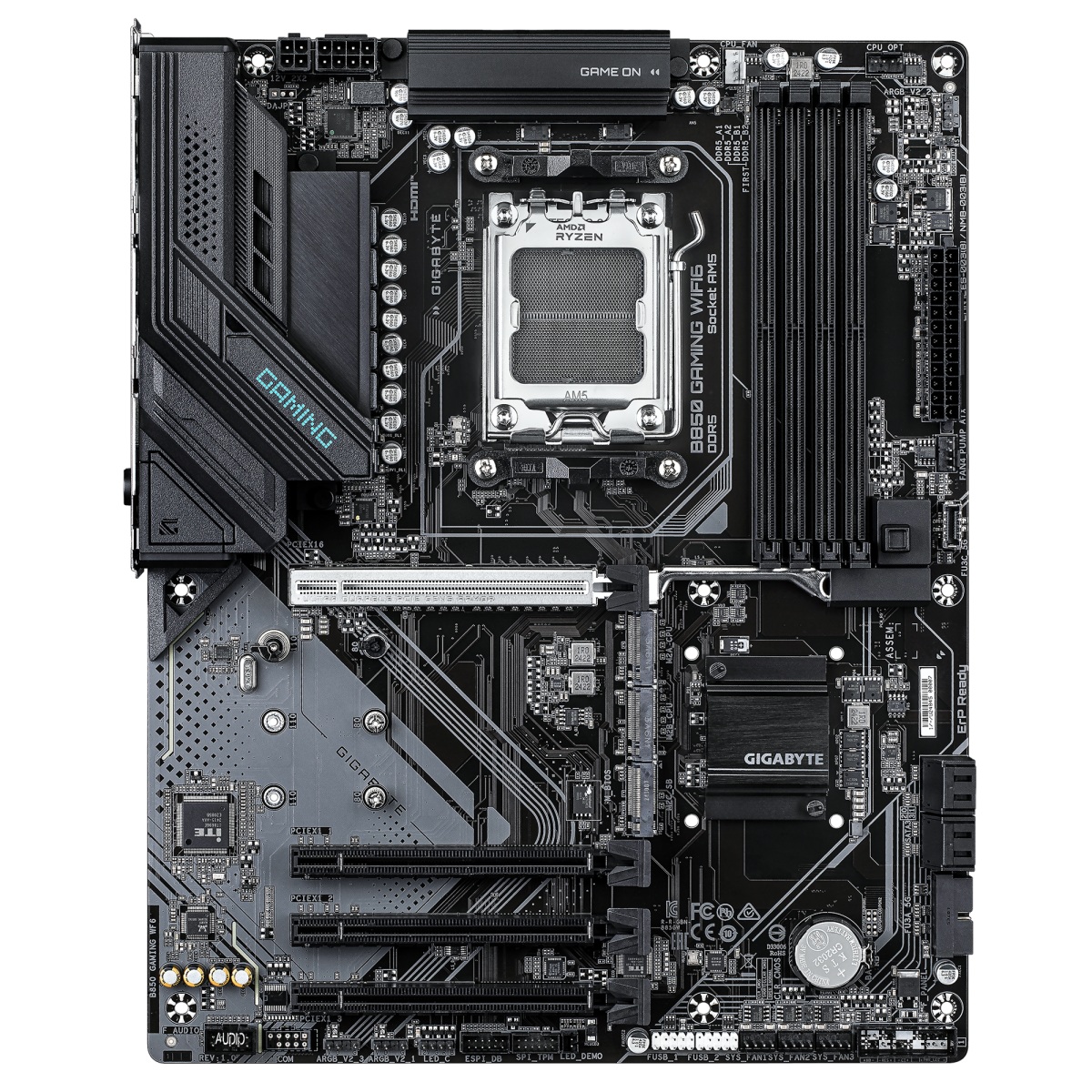

GIGABYTE B850 GAMING WIFI6
Rev. 1.x — Tarjeta madre ATX — AM5 / DDR5
AMD B850 Socket AM5 GAMING ATX
| Procesador y plataforma | |
| Socket | AMD AM5 |
| CPUs soportados | Ryzen™ 9000 Series / Ryzen™ 8000 Series / Ryzen™ 7000 Series |
| Chipset | AMD B850 |
| Memoria | |
| Ranuras | 4 × DDR5 DIMM |
| Capacidad máx. | 256 GB (64 GB por módulo) |
| Arquitectura | Dual Channel |
| Velocidades nativas | 440048005200 |
| Velocidades OC | 5600580060006200640066006800700072007400760078007900795080008200 |
| Perfiles | AMD EXPO™ + XMP — Non-ECC Unbuffered 1Rx8/2Rx8/1Rx16 |
| Gráficos integrados | |
| DisplayPort | 1 × DP 1.4 — hasta 3840×2160 @ 144 Hz — HDR |
| HDMI | 1 × HDMI 2.1 — hasta 4096×2160 @ 60 Hz — HDCP 2.3, HDR |
| Nota | Requiere CPU con gráficos integrados (Ryzen 8000 Series) |
| Expansión PCIe | |
| PCIe x16 (CPU) | 1 × — PCIe 5.0 x16 con Ryzen 9000/7000 PCIe 4.0 x8 (Ryzen 8000 Ph.1) / PCIe 4.0 x4 (Ryzen 8000 Ph.2) Solo GPU o NVMe SSD, no simultáneamente |
| PCIe x1 (Chipset) | 3 × PCIe 3.0 (físicamente x16, eléctrico x1) |
| Almacenamiento | |
| M2A_CPU | Socket M, tipos 22110/2280 — PCIe 5.0 x4 (Ryzen 9000/7000) / PCIe 4.0 x4 (Ryzen 8000) |
| M2B_CPU | Socket M, tipos 22110/2280 — PCIe 4.0 x4 (Ryzen 9000/7000/8000 Ph.1) / PCIe 4.0 x2 (Ryzen 8000 Ph.2) |
| M2C_SB (Chipset) | Socket M, tipos 22110/2280 — PCIe 4.0 x2 |
| SATA | 4 × SATA 6 Gb/s — RAID 0/1/10 (SATA) + RAID 0/1/5/10 (NVMe) |
| Nota RAID 5 | Solo disponible con Ryzen™ 9000 Series |
| USB | |
| Panel trasero |
|
| Internos |
|
| Red y conectividad inalámbrica | |
| LAN | Realtek® GbE — 1 Gbps / 100 Mbps / 10 Mbps |
| Wi-Fi | Wi-Fi 6 Realtek® RTL8851BE — 802.11 a/b/g/n/ac/ax — 2.4 / 5 GHz — 80 MHz |
| Bluetooth | 5.3 |
| Antenas | 2 × conectores SMA (2T2R) en panel trasero |
| Audio | |
| Codec | Realtek® High Definition Audio |
| Canales | 2 / 4 / 5.1 / 7.1 |
| Salidas | 3 × jacks de audio en panel trasero |
| Conectores internos | |
| Alimentación | 1 × ATX 24-pin + 1 × ATX 12V 8-pin + 1 × ATX 12V 4-pin |
| Fan / Pump headers | 1 × CPU fan, 1 × CPU fan/pump, 3 × system fan, 1 × system fan/pump |
| LED / RGB | 3 × ARGB Gen2 headers, 1 × RGB header |
| Otros | Header TPM (SPI/SPI 2.0/SPI V2), reset jumper, Clear CMOS jumper, header panel frontal, header audio frontal |

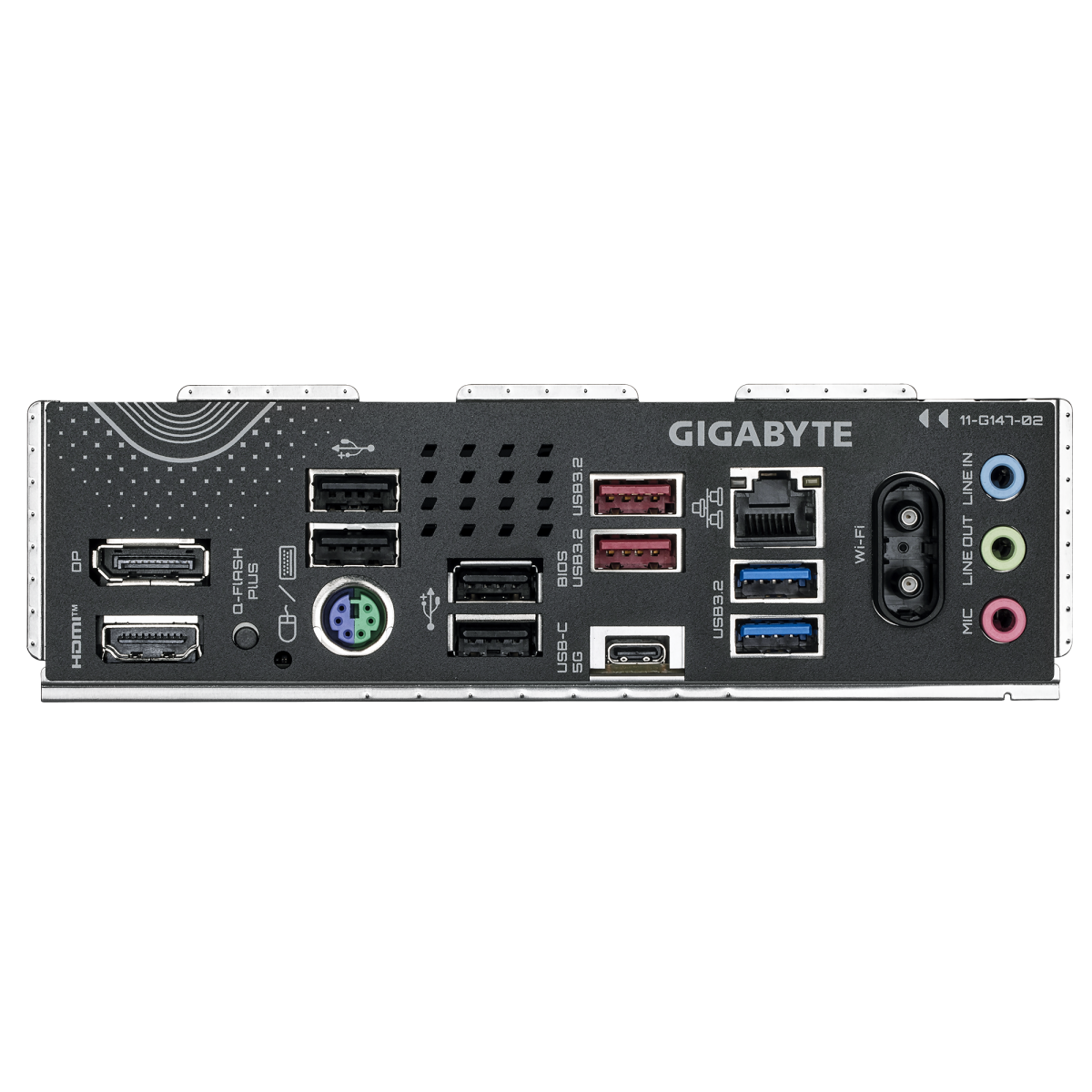

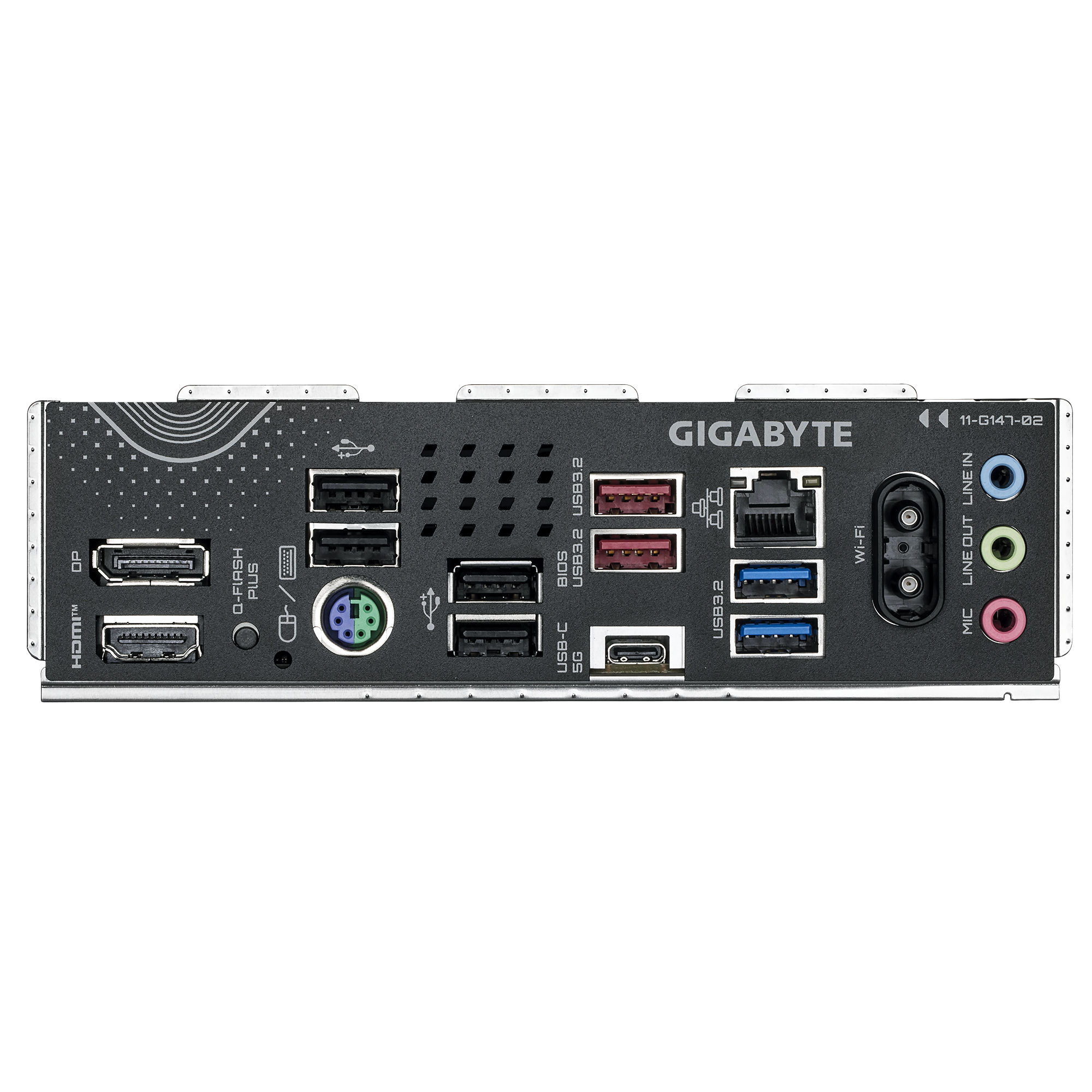

| Panel trasero (resumen) | |
| Puertos |
|
| BIOS | |
| Flash | 256 Mbit — AMI UEFI BIOS |
| Estándares | PnP 1.0a / DMI 2.7 / WfM 2.0 / SM BIOS 2.7 / ACPI 5.0 |
| Funciones | Q-Flash Plus (sin CPU/RAM/GPU), Q-Flash |
| Software | |
| Incluido | GIGABYTE Control Center (GCC), Smart Backup, Q-Flash Plus, Norton® Internet Security, gestión de ancho de banda LAN |
| SO compatible | Windows 11 (64-bit) / Windows 10 (64-bit) |
| Dimensiones | |
| Factor de forma | ATX |
| Dimensiones placa | 30,5 × 24,4 cm |
| Empaque (aprox.) | ~38 × 28 × 8 cm — ~1,5 – 1,8 kg (con accesorios) |
