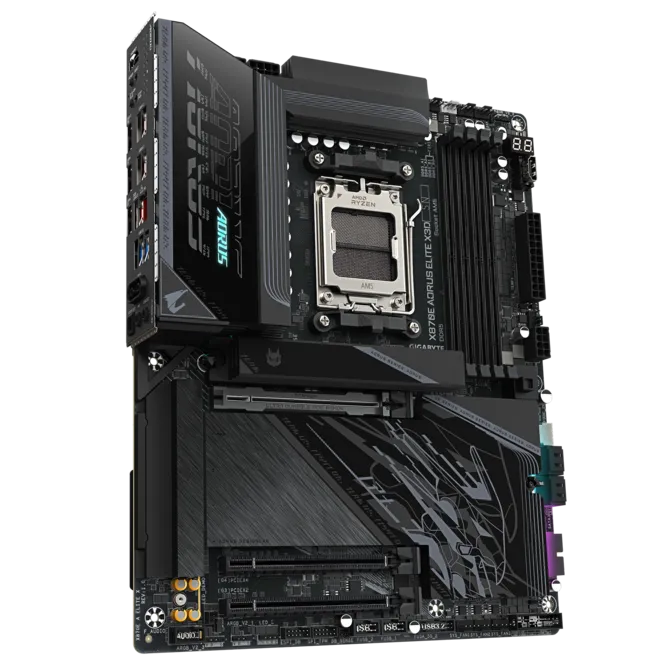

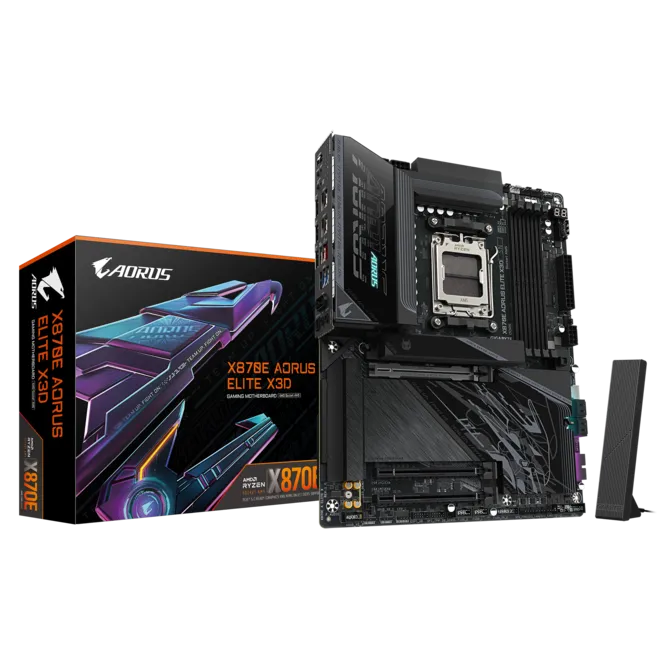

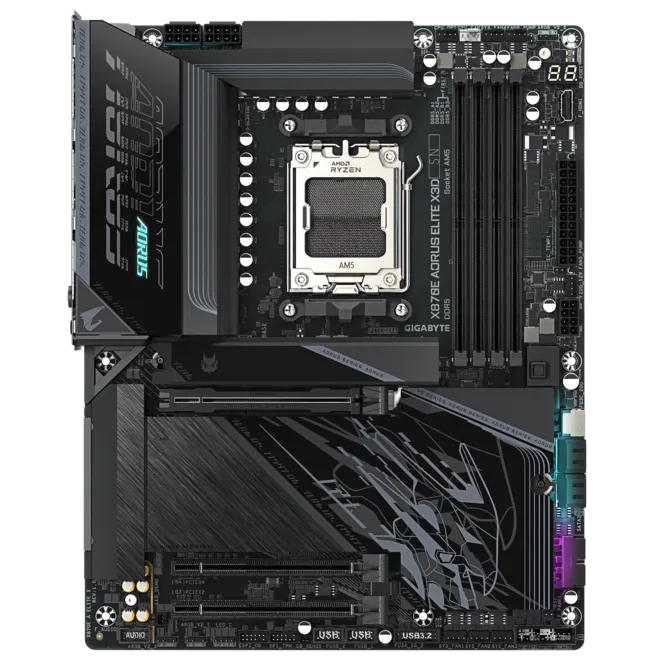

Gigabyte X870e Aorus Elite X3D Wifi7 ATX
| Socket | AMD AM5 (LGA 1718) |
|---|---|
| Chipset | AMD X870E |
| CPUs compatibles | AMD Ryzen 9000 / 8000 / 7000 Series |
| Tipo de memoria | DDR5 non-ECC Unbuffered |
| Slots RAM | 4 x DIMM hasta 256 GB |
| Canales | Dual Channel |
| Velocidad RAM | 4800/5200 MT/s nativo, O.C. hasta 9000 MT/s |
| Perfiles OC | AMD EXPO y XMP |
| M.2 x2 (CPU) | PCIe 5.0 x4 |
| M.2 x2 (Chipset) | PCIe 4.0 x4 |
| SATA | 4 x SATA 6 Gb/s |
| RAID NVMe | RAID 0,1,5,10 |
| RAID SATA | RAID 0,1,10 |
| PCIe x16 (CPU) | PCIe 5.0 x16 (Ryzen 9000/7000) |
| PCIe x4 (Chipset) | PCIe 4.0 x4 |
| PCIe x2 (Chipset) | PCIe 3.0 x2 |
| USB4 Type-C | 2 x 40 Gb/s con DisplayPort |
| USB 3.2 Gen2 Type-A | 5 x 10 Gb/s |
| USB 3.2 Gen2 Type-C | 1 x 10 Gb/s |
| USB 3.2 Gen1 Type-A | 3 x 5 Gb/s |
| LAN | Realtek 5 GbE |
| Wi-Fi | Qualcomm Wi-Fi 7 — 2.4/5/6 GHz |
| Bluetooth | Bluetooth 5.4 |
| Audio | Realtek ALC1220 — HD Audio 7.1ch |
| HDMI trasero | HDMI 2.1 hasta 4K@60Hz |
| BIOS | AMI UEFI 512Mb — Q-Flash Plus |
| Formato | ATX 305×244 mm |
| SO | Windows 11 64-bit |
| Garantía | 1 año |
